Pure & High-Purity Water Systems for Electronics and PCB Manufacturing
Start with the rinse and cleaning process, then select RO, optional EDI, final filtration, storage and distribution around the actual quality-control points.
Quick engineering overview
Establish the design basis before selecting equipment.
Each point below is specific to this industry; final values belong in the customer’s process specification.
Where water is used
Map water use across Electronics & PCB.
Each use point has its own quality, demand and delivery context. The process map comes before equipment selection.
PCB cleaning
Water quality is linked to the selected board-cleaning sequence.
Final rinsing
Ionic residue and final-rinse consistency guide the treatment route.
Surface preparation
Prepare water where process chemistry and surfaces demand it.
Component cleaning
Define flow and quality at the actual cleaning equipment.
Process preparation
Separate production demand from intermittent utility demand.
Typical water challenges
Resolve these inputs before selecting equipment.
Rinse quality is not equivalent to a generic ‘high purity’ label.
Ionic residue and particles can require different control points.
Rinse demand is often discontinuous, making storage and distribution important.
Water quality priorities
Specify the parameters that matter to this process.
Relevant parameters are shown here for engineering discussion, not as generic guaranteed specifications.
ParameterWhy it mattersEngineering basis
ConductivityProvides a practical quality control point for selected rinse duties.Define the target at the rinse use point.
Ionic residueRelevant to cleaning and surface-preparation consistency.Confirm ions and sampling approach.
ParticlesCan affect sensitive cleaning steps.Select filtration by process risk.
Recommended treatment process
Build the route around the confirmed production requirement.
Start with the rinse and cleaning process, then select RO, optional EDI, final filtration, storage and distribution around the actual quality-control points.
Feed-water reviewConfirm water and process inputs
PretreatmentConfigured from the approved treatment route
ROConfigured from the approved treatment route
Optional EDIConfigured from the approved treatment route
Final filtrationConfigured from the approved treatment route
Rinse storage & deliveryDeliver to the defined production use
Pretreatment protects the membrane train.
RO establishes a process-water basis.
Optional EDI and filtration are linked to the rinse requirement.
Storage evens out intermittent cleaning demand.
How each treatment stage works
A water system is a connected process, not a single machine.
The exact stages depend on water analysis and the agreed process duty.
01
Pretreatment
Filtration, media treatment, softening or ultrafiltration are selected to protect downstream membranes and match the feed-water condition.
02

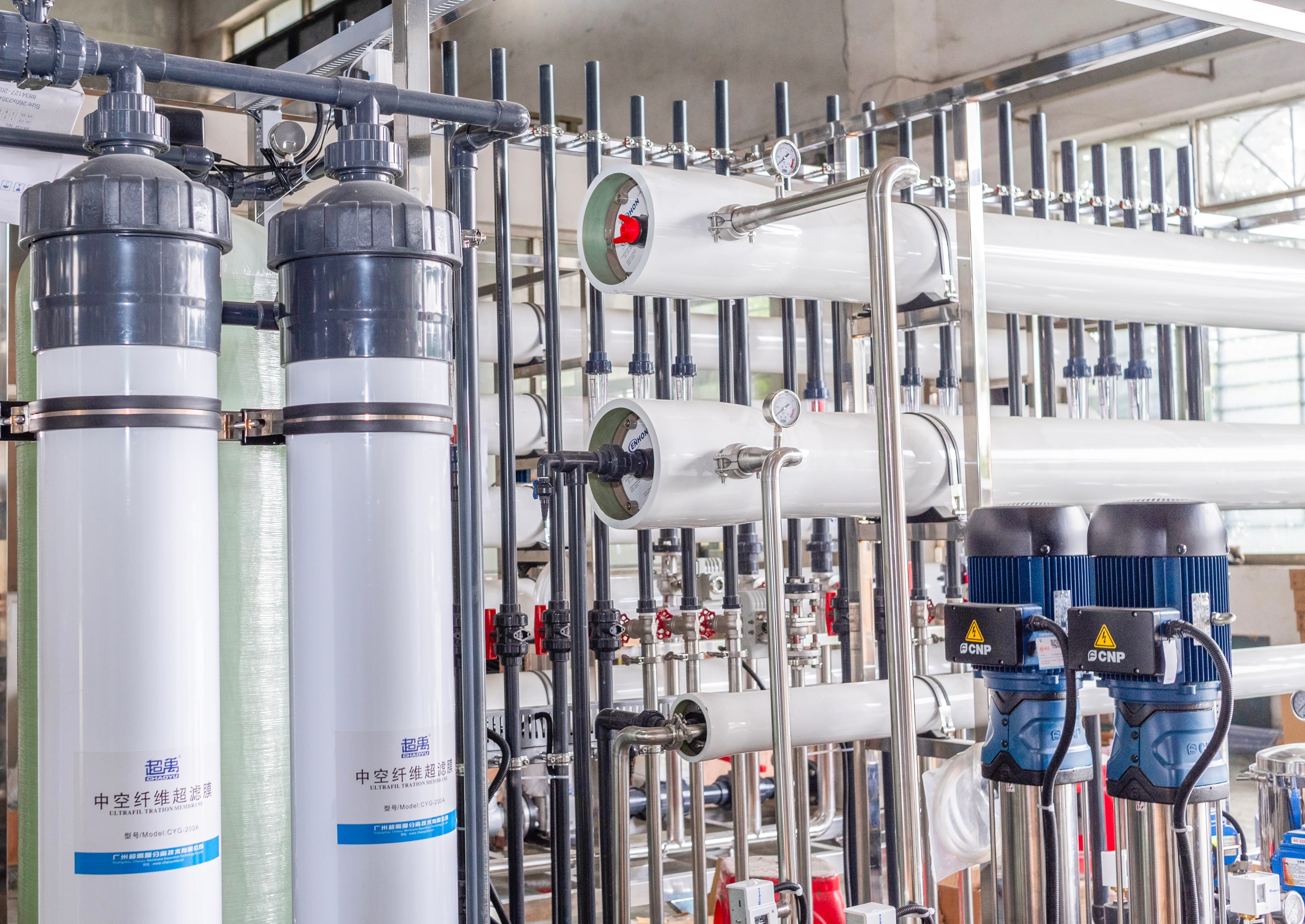

Reverse osmosis
RO removes dissolved salts and reduces conductivity. Single-pass or double-pass arrangements are selected from the required water quality.
03

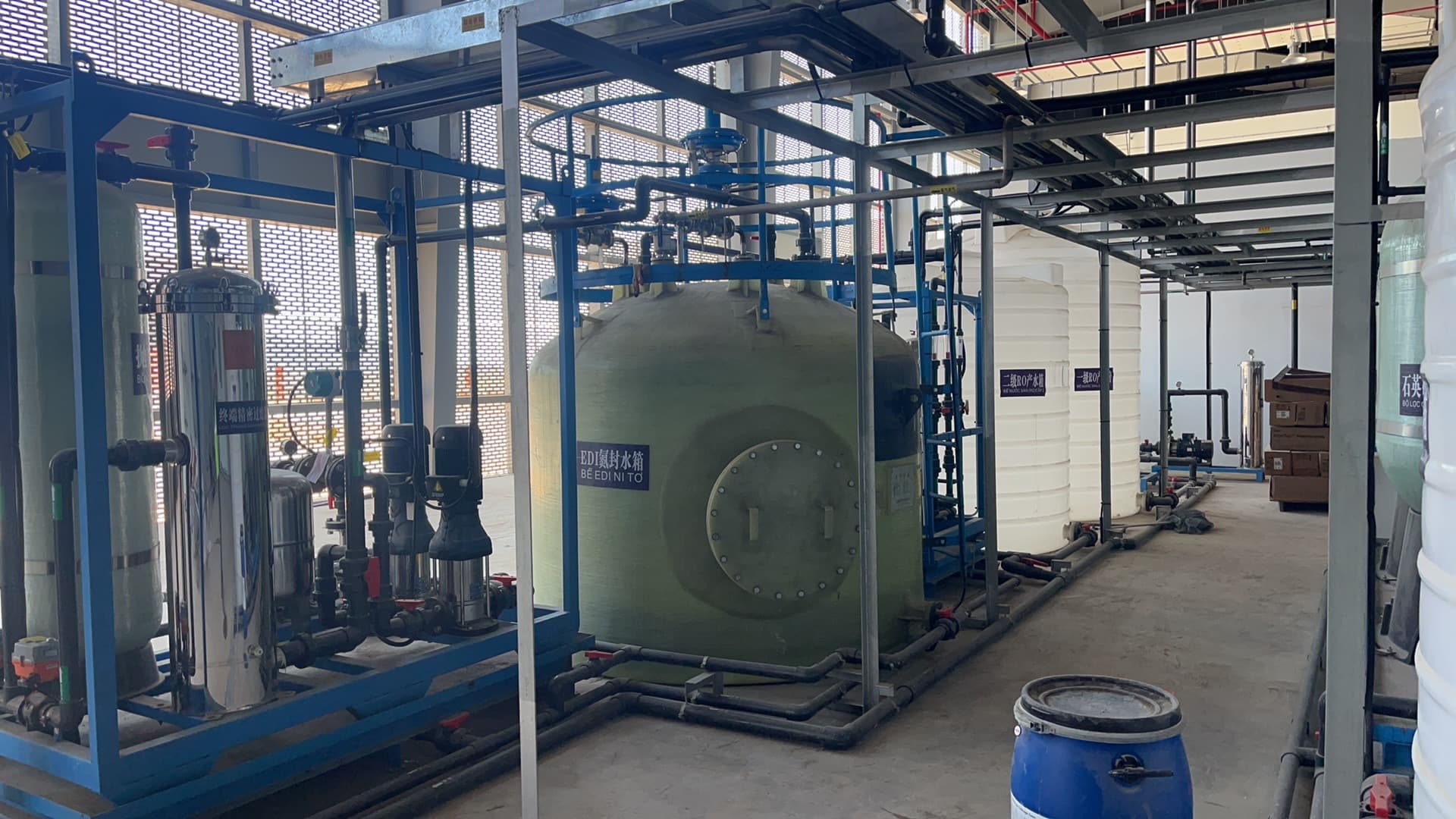

EDI and final polishing
EDI, UV or final filtration are added only where the confirmed process duty requires a higher-purity or controlled final-water condition.
04

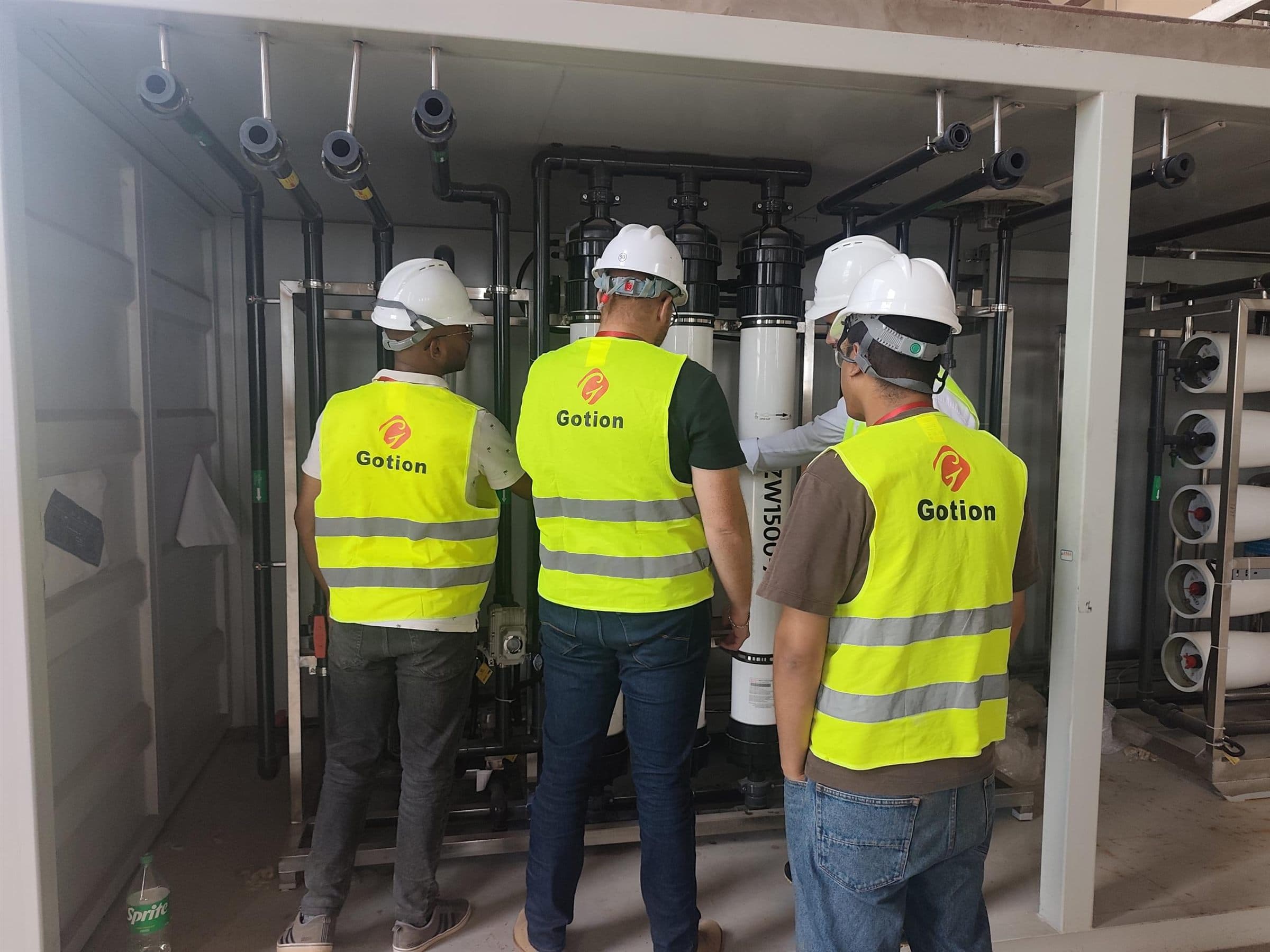

Storage and distribution
Tank sizing, recirculation, monitoring and use-point interfaces are part of the delivered water system—not an afterthought after generation.
Rinse quality & ionic contamination
Make the final rinse the design reference.
PCB and electronics projects should map each rinse and cleaning step before choosing a water route. The most sensitive use point establishes the needed control strategy.
- 01Incoming water
- 02Surface preparation
- 03Cleaning
- 04Rinsing
- 05Drying / inspection
Recommended systems
Equipment platforms relevant to this solution.
These established platforms provide a starting point. The final system configuration remains project-specific.
Pure WaterPure Water System
Integrated treatment for stable industrial process water and production utilities.
View system
RO + EDIRO + EDI System
RO primary desalination with continuous EDI polishing for confirmed high-purity water duties.
View system
Ultrapure WaterUltrapure Water System
RO, EDI and selected polishing stages for critical industrial water-quality requirements.
View system

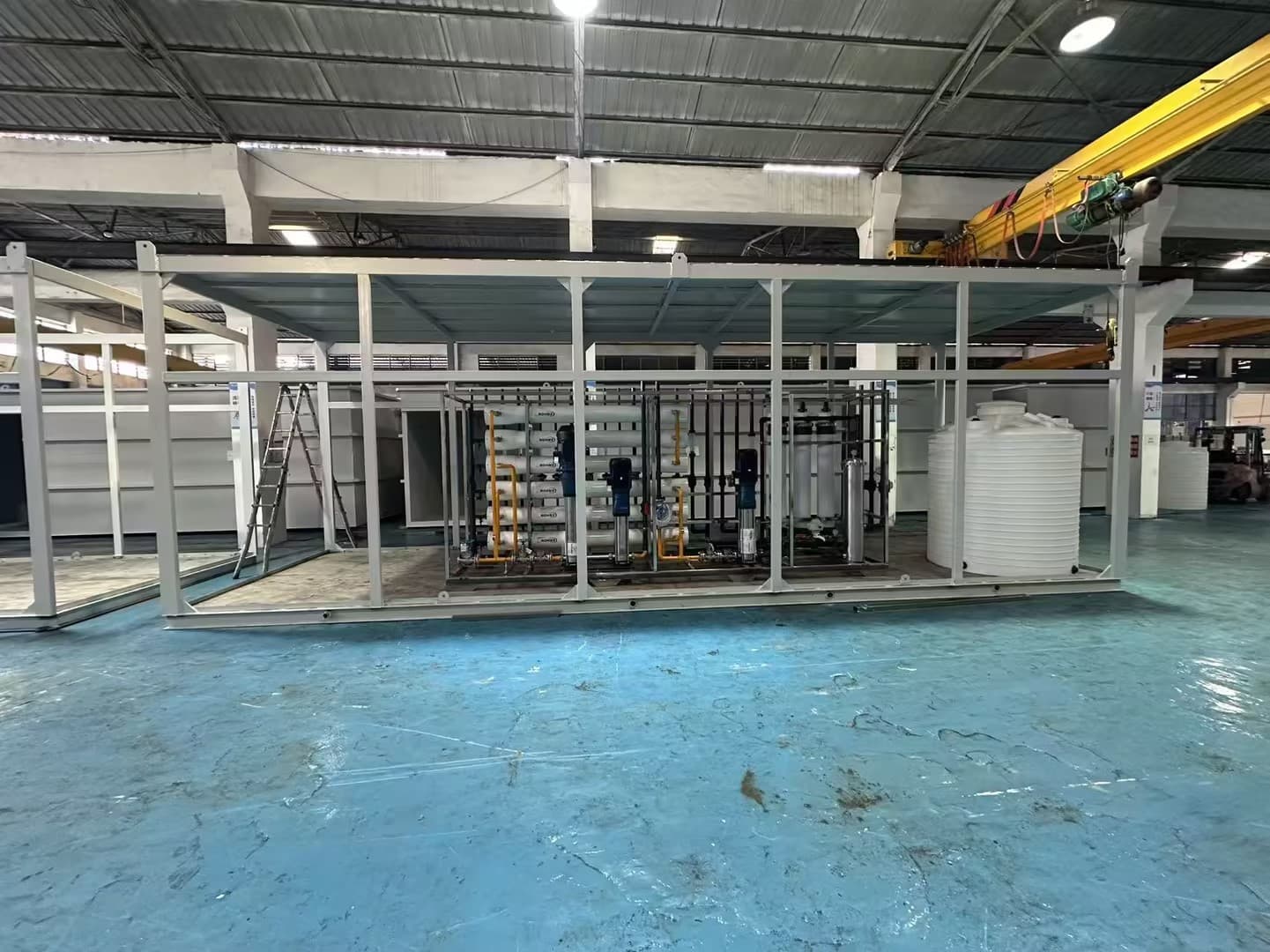

Water ReuseWater Reuse System
Fit-for-purpose recovery systems engineered around the source stream and final industrial reuse point.
View systemEngineering outcomes
What the solution review should clarify.
A route tied to the real production use point
A clear basis for configuration, controls and distribution
Final requirements confirmed from the customer’s process specification.
Reliable operation
Operation and maintenance are part of the design.
Quality and flow monitoring points defined for the duty
Protective sequencing and maintainable service access
Operating responsibilities made visible before handover
Installation & integration
Plan the site interfaces before delivery.
Piping, electrical, drain and footprint interfaces identified
Factory-assembled skid or modular delivery assessed
Commissioning inputs planned with the site team
Buyer checklist
Confirm the variables that are unique to this industry.
Bring the core project inputs plus the items at right to an engineering discussion.
01Feed water
02Required capacity
03Target water quality
04Operating hours
05Country
06Electrical standard
07Which rinse is the most quality-sensitive?
08What is the peak rinse demand?
09Are any return streams suitable for reuse review?
Technical FAQ
Questions before the technical proposal.
Do PCB lines always need ultrapure water?+
No. The correct quality depends on the cleaning, rinse and surface-preparation process.
What does ionic contamination control mean here?+
It means defining relevant ions, sampling point and acceptable process risk rather than relying on a generic machine label.
Can RO + EDI support electronics cleaning?+
It can where the required quality justifies an EDI polishing stage and upstream conditions are suitable.
Should rinsing water be stored?+
Often yes, to handle intermittent peak use and create a stable delivery interface.
Can rinse water be recovered?+
Potentially, after characterizing the stream and confirming the reuse point.
What should be supplied for quotation?+
Send feed-water analysis, rinse stages, quality objective, peak flow and plant layout.
